MRI Equipment

I'm Interested in this Product

I'm Interested in this Product

I'm Interested in this Product

Excellent for Orthopedic Use

This Extremity MRI has:

0.2 Tesla Vertical Permanent Magnet Designed for Extremity Work 20 mT/m Gradients, DICOM 3.0 Pentium Computer; Software Rev. 1.1A Optical Disk for Archiving, Philips Monitor ; UPS Power

INCLUDES: Scan Orientations, Sagittal, Trans-Coronal and DBL. Oblique and Multi-Planar Scout.

ACQUISITION SEQUENCES INCLUDE SE, GE, IR, STIR, FSE, GE-STIR, 3-D GE, ME, TME and HSE.

Slice Thickness 2-D : 2mm ; 3-D: 0.6mm

COILS INCLUDE: Knee, Shoulder #1, Foot and Ankle #4, Hand / Wrist #3 and Knee #2.

This Extremity MRI can be installed in a room of 14? X 15?. Power Requirements are 110V with 20 amp service.

This System is Available Immediately.

PLEASE CALL JOHN AT (239)433-5332 OR FAX (239)433-3919 FOR FURTHER INFORMATION. All Systems Subject To Prior Sale

I'm Interested in this Product

Available Soon.

I'm Interested in this Product

I'm Interested in this Product

In Good cosmetic & working condition

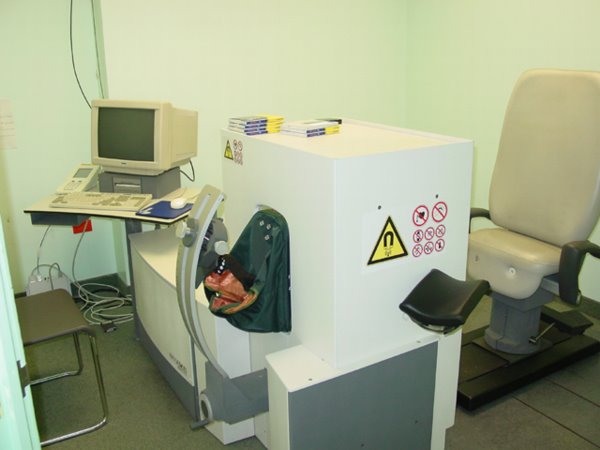

Model=Extremity Artoscan

Equipment_Description=Magnet:

Field Strength: 0.2 Tesla

Fringe Field: Negligible

Weight: 1800 pounds

Internal Shielding:L Self-contained Faraday cage

External Shielding Requirements: None

Coil Adjustment: Self-centering mechanism

Imaging

Standard Sequences: SE, ME, GE, IR

Special Sequences: Multiplanar ortho scout and Multi-angle/multislice

Image Resolution: 0.4 mm

Slice Thickness: 0.8 - 10mm

Processing Software: Comprehensive selections

Hardware

Platform: ISA industry standard

Image Memory: 1 Gigabyte on-line (10,000 images)

Lan Connectivity: Ethernet option

Hardcopy: Radiographic film or paper

General Footprint area: 30 square feet Standard Compliance: ACR-NEMA standard Safety Requirements: Meets IEC 601-1

Power_Requirements=Power Requirements: 115VA, 60Hz, 1.3kVA Last_Serviced=10/1/03 Operating_Manuals_Present=Yes System currently in use. This system is used to scan knees, ankles, feet, hands, and elbows. New in 1997 was $340,000. No reasonable offer refused.

I'm Interested in this Product

I'm Interested in this Product

I'm Interested in this Product

I'm Interested in this Product

I'm Interested in this Product

Gradient System Table 15mT/m Gradient Amplitude 30T/m/sec Slew Rate

Two speed power-driven longitudinal movement Power driven vertical movement down to 18'' for patient convenience Power-driven lateral movement for easy positioning and off-center FOV imaging Table weight limit of 500lbs. Extra wide 80cm table for patient comfort Gantry: Award winning asymmetrical design 41.5cm usable gap 110cm post to post opening.

I'm Interested in this Product

I'm Interested in this Product

I'm Interested in this Product

The 1.5T MAGNETOM Sonata is a system of unparalleled power, perfect as a clinical research system and for cardiovascular and neuroradiological applications. MAGNETOM Sonata gives you everything you need for a state-of-the art exam: crystal-clear image quality supported by previously stored optimized sequences, clinical flexibility, and ease of operation. MAGNETOM Sonata is the fastest MR system in the industry for research and cutting edge clinical applications (such as DTI, PWI, MRS, fMRI, CVMR) - it uses syngo and Inline-Technology. Siemens?s unique Integrated Panoramic Array coil concept allows you to scan with up to 16 array elements simultaneously for improved patient throughput.

I'm Interested in this Product

I'm Interested in this Product

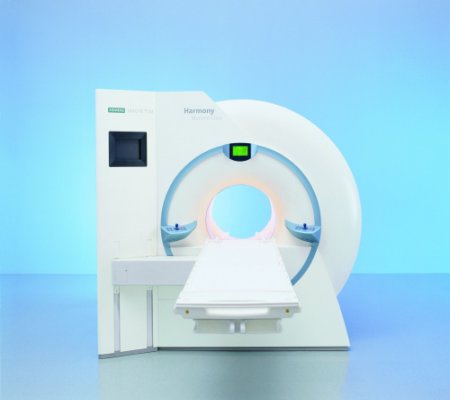

Manufacturer=Siemens Harmony

Age_of_Equipment=2/1999

Hand_Pieces=Complete coil pkg

Equipment_Description=Excilent condiction

ACR Accredited

Has Filter software

Power_Requirements=Example: 120V AC or 240V AC - - 60Hz or 50Hz

Last_Serviced=PM done 30 days ago

Operating_Manuals_Present=yes

Equipment_Under_Warrranty=yes

Equipment_Location=Houston, TX - USA

Original_Boxes_Available=No

Requires_Crating=yes

Ready_For_Shipping=No

Do_You_Own_The_Equipment=yes

Asking_Price=$775,000

I'm Interested in this Product

I'm Interested in this Product

Siemens is the only company to deliver open high field systems. We continue to gain important clinical experience and the proof of the product is in the outstanding image quality.

While other companies talk about high field open systems, Siemens has delivered.

I'm Interested in this Product

The guaranteed homogeneity on 40 cm FoV, including in the z-direction and the standard high order shim enable best spine and abdominal imaging ever in the coronal plane.

MAGNETOM Trio opens new doors to applications in abdominal, cardiac, spine and orthopaedic MR at 3T

I'm Interested in this Product

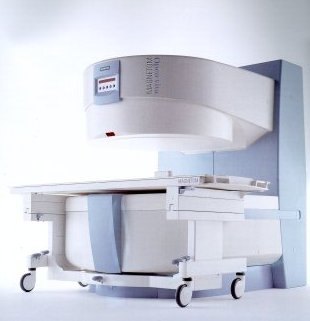

With the introduction of the MAGNETOM Open and later the MAGNETOM Open viva, SIEMENS Medical engineering set new standards in patient-friendly MR. Like its predecessors, the MAGNETOM Open viva enables comfortable, patient friendly examination at minimal cost by introducing the first whole body C-shaped permanent magnet*. The people-centric approch led to design innovations like the unprecedented openness, the ergonomic design and the calming effect of the colors.

Scan more economically

Drawing on our experience with other MAGNETOM family members, we have integrated technology which has already proven itself, but not yet been available on low-field systems. For instance, for the first time a C-shaped open MR system now implements a permanent magnet*, meaning less electricity is needed ? ultimately lowering your overhead. Or the revolutionary Integrated Panoramic Array?* coil concept which helps improve your workflow ? thus saving you time, is optionally available.The other advantages of the new permanent magnet* are, of course, lower running costs and easier installation. This makes MAGNETOM Open viva an ideal choice, whether you want to specialize in open MR or you are looking for a versatile complement to your other whole body system.

When everything flows along as it should

Higher productivity is also related to ease of use. In addition to the new magnet, the Integrated Panoramic ArrayTM *coil concept optimizes patient set-up times. And there is a new range of application sequences that expand the clinical capabilities of open MR. The MAGNETOM OPEN viva is built on a modular concept that facilitates the incorporation of new technologies from other Magnetom family systems via the MAGNETOM Evolve program. This modularity also provides for easier maintenance and thus higher reliability and maximum uptime.

I'm Interested in this Product

QUANTUM GRADIENTS and SYNGO PLATFORM

This MRI has: Short Bore Magnet, Quantum Gradients, SYNGO Platform , Maestro Class. Software Includes: Worklist, 3-D Usage License, 3-D MPR (Volume of Interest) 3-D SSD, 3-D MIP, Advanced 3-D, Advanced Angio Package, Advanced Turbo Package, Care Bolus, Echo Planar Imaging with Profusion and Diffusion, Image Filter, Maestro Plus - I-PET, Panoramic Table, Core Basic, Core Plus, SYNGO General License, EPR.

Computer: Dell with Windows NT 4.0 DICOM, CD-ROM and Archiving, 3 Hard Disks ? Fujitsu, CD Re-Writable.

COILS Include: CP Spine Array, CP Body Array, CP Angio Array, CP Extremity, CP Head Array, CP Large Flex, CP neck Array, CP Flex Small, and CP Shoulder Array.

ACR Certified. Currently Serviced by Siemens and in Like New Condition. Currently Installed and Operational.

Available Today. Optional Intstallation Training Onsite also available.

I'm Interested in this Product

I'm Interested in this Product

I'm Interested in this Product

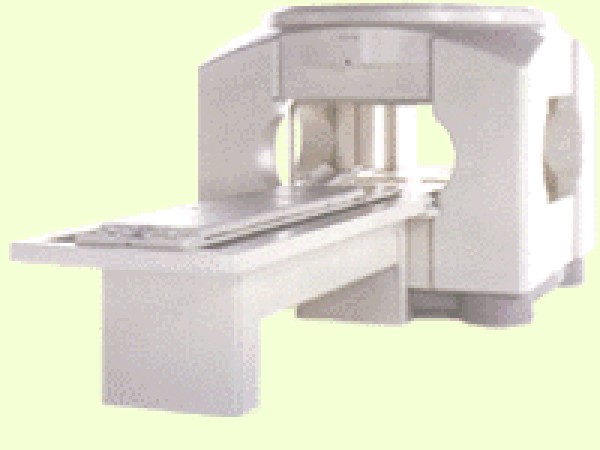

Open advantages OPART's success is mostly established by the new superconducting magnet Toshiba developed. This 0.35T open and cryogenless magnet is the foundation for optimum imaging flexibility and clinical productivity. The four sided open design means a broader patient population can be accomodated. Its allaround patient access enables the scanning of large, claustrophobic or pediatric patients. And also allows for exams which are not possible with common base type magnets; applications include joint motion examinations and off-centre Field-of-View imaging with its floating table top.

Advanced clinical applications The OPART incorporates the latest advances in gradient, RF and computer technology to deliver advanced clinical applications, such as MR Cholangio-Pancreatography, MR Myelography and MR Urography. The system's superconducting magnet provides all of these studies with images of the highest diagnostic clarity.

Economic advantages As in all of Toshiba's MR scanners in the ART series, OPART features a sophisticated icon based user interface that allows intuitive operation. Many presets have been programmed behind the icons, facilitating fast operation. The preconfigurable interface enables a high patient throughput and allows routine examinations to be conducted quickly and efficiently. These aspects result in a high productivity and return on investment. Furthermore, OPART's compact magnet can be easily integrated within an existing radiology department. And as the magnet is cryogenless, helium refills and its associated downtime are completely eliminated which maximises system productivity.

I'm Interested in this Product

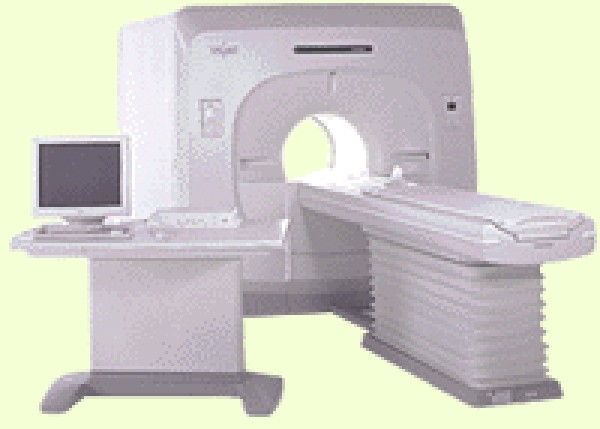

High performance, advanced applications Backed by powerful gradients and precise digital RF, VISART's advanced fast scan sequences accommodate clinical requirements for a broad patient population and improves throughput. Its standard Echo Planar Imaging (EPI) techniques, such as FastASE, dramatically reduce scan time for true 1-second MRI, thus freezing motion. Clinical applications like MRCP, MR Myelography, MR Urography, MR Cisternography, fast brain imaging and breathhold studies of the abdomen can be performed with short examination times and non-invasively, thus combining patient comfort and departmental productivity. To protect your investment, VISART is built with the future in mind. As new applications emerge, software and hardware can be added, giving you the competitive edge during the system's life.

Efficient operation, easy communication VISART's advanced applications require a clear and easy-to-use interface. The powerful 64-bit RISC platform supports a comprehensive icon based X-Window user interface for fast and simple system operation, freeing more time for patient attention. Many presets and preconfigurable options greatly simplifies examination setup and allows an intuitive control over the MRI system, thus enhancing productivity. VISART fully supports DICOM 3.0 and allows easy transfer of image data. Through the hospital's ethernet based network, VISART can communicate with file servers, workstations and other network equipment. Toshiba's InnerVision Remote maintenance program supports an outstanding service with fast diagnosis via telephone lines.

17mT gradient strength, 23.T/m/sec slew rate, Cardiff Visart, Current software V4.0 ?? (Can perform DWI using MS EPI, also PWI using ASL technique), Coil configuration: QD Body Coil (Transmit/Receive - in gantry). QD Brain Coil, QD Knee Coil, QD Array Spine coil, QD Array Body Coil, Array Breast Coil, Circular Coil set x 2 (50mm, 100mm, 150mm & 200mm), Array Coil Convertor, Shoulder Coil
